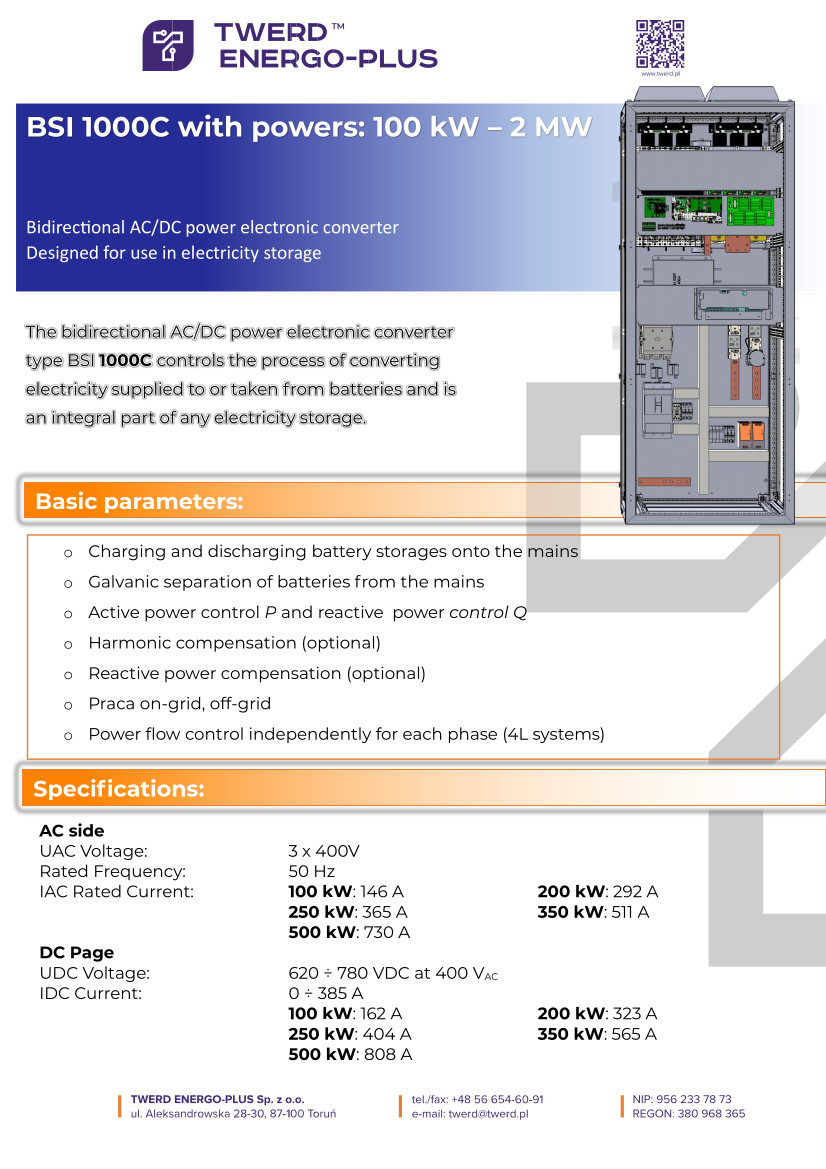

BSI1000C – Bidirectional Power Converter for Energy Storage Systems (Cabinet) (BESS)
Available powers: 100 kW – 2 MW
AC : 400-690V
DC: 400-1500V
Product enquiryBSI1000C – Bidirectional Power Converter for Energy Storage Systems (Cabinet) (BESS)
Available powers: 100 kW – 2 MW
AC : 400-690V
DC: 400-1500V
Features
The BSI1000C is a cabinet-mounted AC/DC power electronic converter designed for use in electrical energy storage.
BSI1000C controls the process of converting electricity supplied to or taken from batteries and is an integral part of any electricity storage.
Features:
- Charging and discharging battery storages to the mains
- Galvanic separation of batteries from the mains (optional)
- Active power control P and reactive power control Q
- Harmonic compensation (optional)
- Reactive power compensation (optional)
- On-grid and off-grid operating modes
- Power flow control independently for each phase (4L systems)
Communication:
- Interfaces: RS-485, Ethernet, CAN
- Communication protocol: Modbus RTU functions: 3, 6, 16, Modbus TCP/IP functions 3, 6, 16, CANopen
- RS-485 baud rate: 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps
