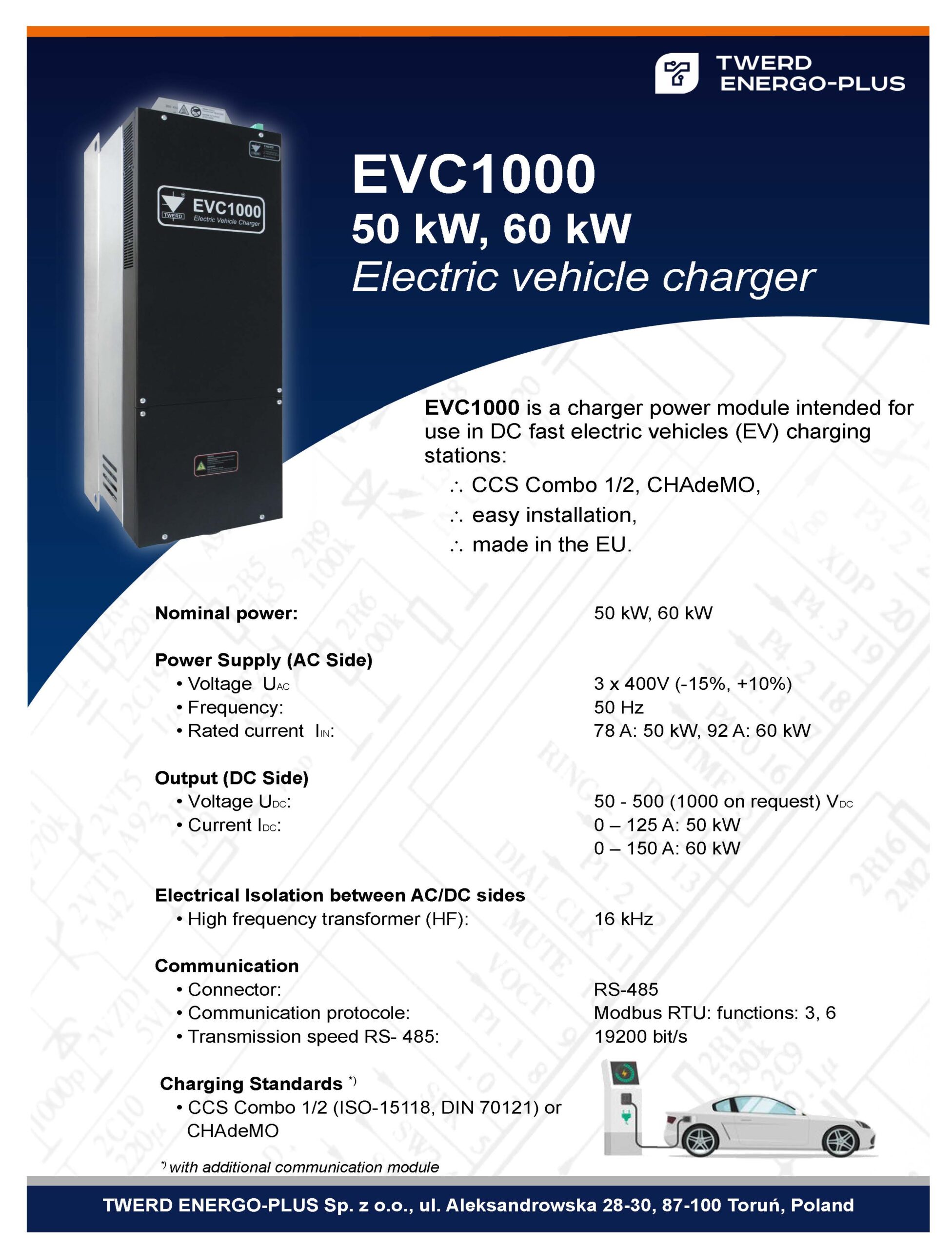

EVC1000 is a charging power module intended for use in DC fast electric vehicles (EV) charging stations.

Power Supply (AC Side)

• Voltage: 3 x 400V (-15%, +10%)
• Frequency: 50 Hz
• Rated current: 78 A

Output (DC Side)

• Voltage: 50 – 500 Vdc
• Current: 0 – 125 A

Electrical Isolation between AC/DC sides

• High frequency transformer (HF): 16 kHz

Communication

• Connector RS-485
• Communication protocol: Modbus RTU, functions: 3, 6
• Transmission speed RS- 485: 19200 bit/s

Charging Standards

• CCS Combo 1/2 (ISO-15118, DIN 70121)
• CHAdeMO (rev. 0.9.1, 1.1)

Protections

• Short circuit: At the input and output
• Overcurrent: AC side
• Overcurrent: DC side
• Overvoltage: AC side
• Undervoltage: AC side
• Thermal system: Heat sink temperature sensor
• IP grade: IP 20

Maximum efficiency: 95%

Dimensions and weight

• Width x height x depth: 300 x 900 x 370 mm
• Weight: 100 kg
